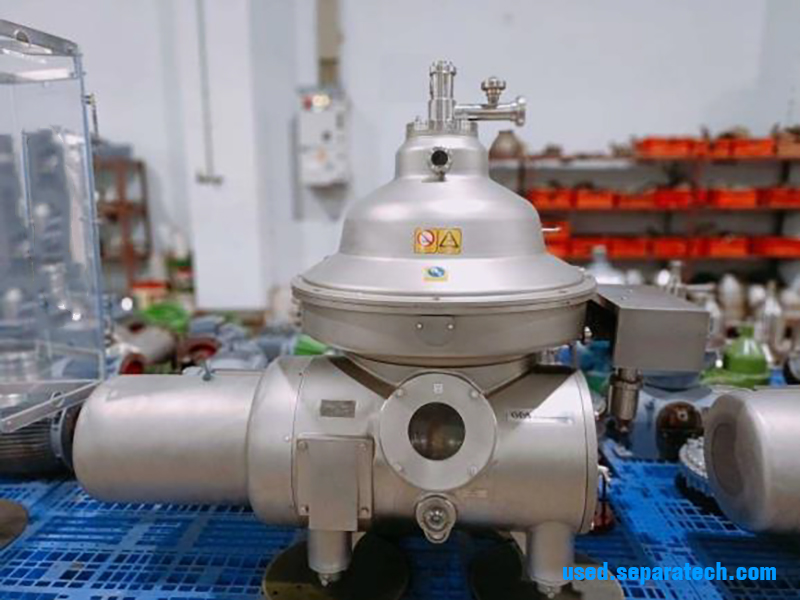

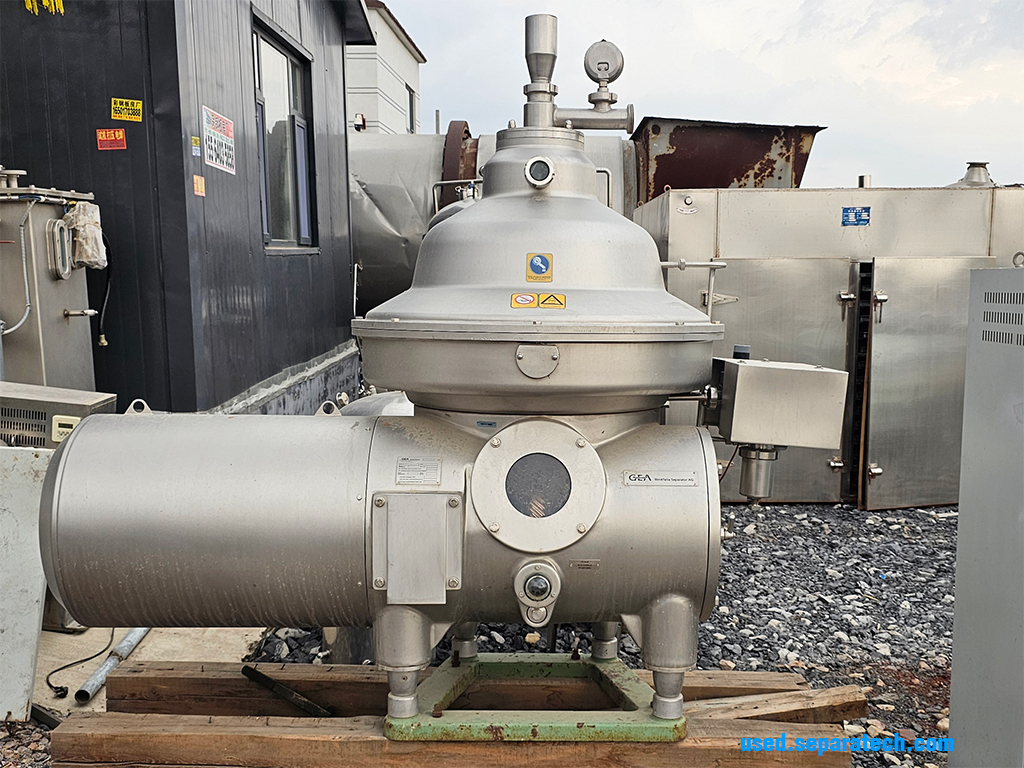

Application of MSD60-06-076 Milk Clarifier
This MSD60-06-076 Milk Clarifier has been designed for milk clarifying.
The self-cleaning bowl makes the machine suitable for fully automatic cleaning-inplace.
Opening and closing of the bowl for discharging the solids takes place hydraulically using water.

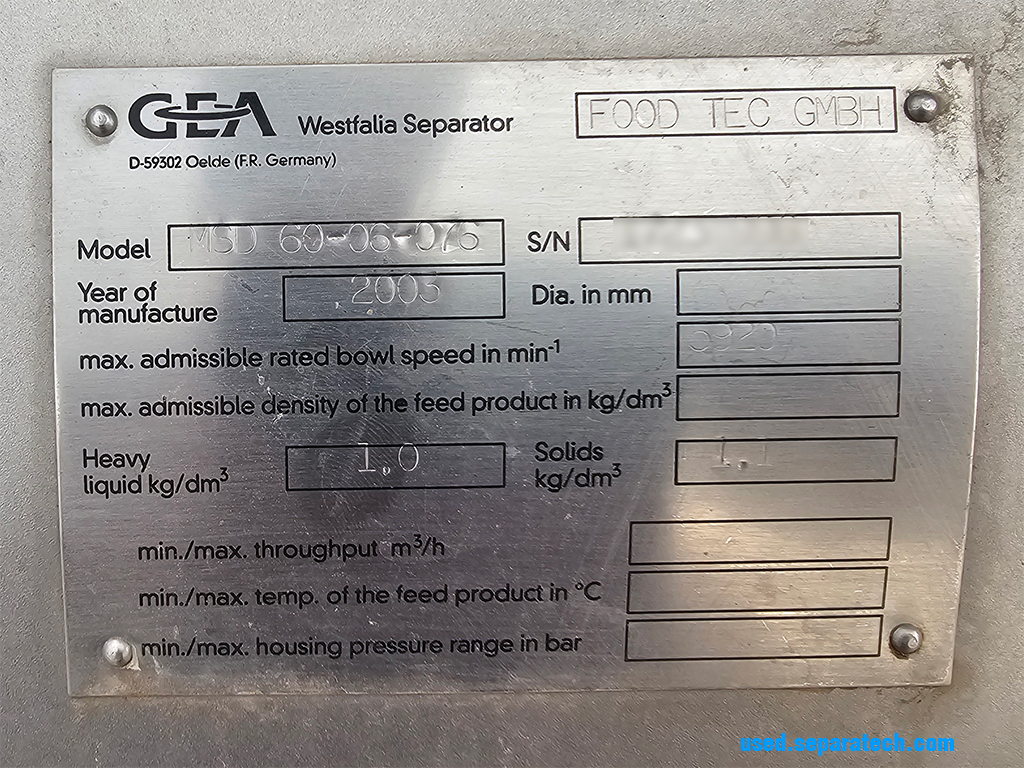

Technical parameters
Manufacturer: GEA Westfalia
Type: MSD60-06-076
Manufacturing year: 2003
Description: Self-cleaning disc stack centrifuge
Throughput: 30,000 LPH
Bowl Speed: 5920/min
Motor Power: 30 kw
Operating principles of the MSD60-06-076 Milk Clarifier
The disc stack centrifuge MSD60-06-076 Milk Clarifier is equipped with a self-cleaning disc type bowl. A hydraulically movable sliding piston opens and closes the bowl.
The product (milk) to be clarified flows into the bowl through feed pipe and into the distributor where it undergoes acceleration until it reaches the bowl rotating speed. The distributor conveys the product to the disks stack where the clarification takes place. The clarified liquid rises in the disks stack and reaches the upper chamber of the bowl. Here a fixed centripetal pump conveys it under pressure and foam-free to the outlet pipe line.
The separated solids collect in the solids holding space from where they are ejected periodically through ejection ports.
Solids ejection is initiated by a control unit.
