PX65 Separator

Used PX65 Separator of Alfa Laval for Sale

Used PX65 Separator; Designation: PX65VGV-14C; Year: 2007; Bowl speed: 7500 rpm; Motor: 25 Kw; Degumming, neutralizing, washing: 10500 Kg/h;

Applications of PX65 Separator

Continuous degumming, neutralizing, dewaxing, and washing of fatty oils, such as various vegetable oils, lard, tallow, and fish oil.

Technical specifications of PX65 Separator

Designation: PX65VGV-14C
Manufacturing year: 2007
Degumming, neutralizing, washing: 10500 Kg/h
Dewaxing: 6250 Kg/h
Bowl speed: 7500 rpm
Motor: 25 Kw
Feed temperature range: 0–100°C (32–212°F)

Operating principles of PX65 Separator

The oil to be separated is fed into the separator bowl from the bottom through a hollow spindle and enters the disc stack.
The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre of the bowl, from where it is pumped out for further
processing. The heavy phase is led over a top disc into a chamber where an adjustable paring device pumps it out of the separator.
Sludge collects in the sludge space and is discharged intermittently and automatically. The discharge is achieved by a hydraulic system which at preset suitable intervals forces the sliding bowl bottom to drop down, thus opening the sludge ports at the bowl periphery. The sludge is collected in the frame and leaves the centrifuge via a cyclone.

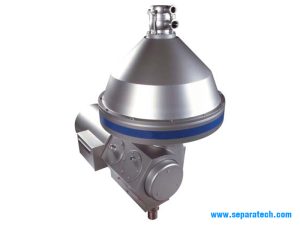

PX65 Separator of Alfa Laval
PX65 Separator Control unit
PX65 Separator Nameplate
